PitchFactor - Eventide Audio

Harmonize and Synthonize

Multi-Voice Intelligent Pitch Shifting from the company that invented it! Ten Pitch and Harmonizer algorithms that cover all the bases. All the way from the original H910 to Quadravox 4-voice harmonizer to Octave and PitchFlex effects. Also included is Harpeggiator which creates arpeggios with selectable rhythm patterns and fuzz effects. Synthonizer for unique synth FX for any instrument. And, of course, MicroPitch and Crystals — go-to sounds for inspiration.

Features

Up to 4 voices of diatonic pitch shifting and up to 1.5 seconds of stereo delay.

  • 100 Presets, unlimited through MIDI
  • StudioQuality Sound
  • Instant Program Change
  • Built-in tuner
  • Real-time control with 10 knobs, MIDI or expression pedal
  • Tap Tempo and MIDI Clock Sync/Generate
  • True Analog Bypass
  • Rugged cast metal construction
  • Metal footswitches for instant Preset access
  • Mono or Stereo operation
  • Guitar or Line Level Inputs and Outputs

Signature Pitch + Delay Effects

PitchFactor features 10 of Eventide’s signature stereo or mono pitch + delay effects:

Diatonic
PitchFlex™
Quadravox™
Octaver™
HarModulator™
Crystals™
MicroPitch
HarPeggiator™
H910/H949
Synthonizer™

Reviews

Create and imagine more than you could before.

The PitchFactor is a pitch shifter/harmonizer/octave and so much more, adding layers upon layers of sound into your signal path, and allowing you to create and imagine more than you could before.

Editor
Pedal of the Day

Artists Using PitchFactor

Annie Clark
St. Vincent
Chris Carter
Chris & Cosey, Throbbing Gristle
Dave Weiner
Steve Vai
Young the Giant
Young the Giant
Aaron Janik
Faith Evans, Dwele
Angel Deradoorian
Deradoorian, Dirty Projectors
Brien Brannigan
Avenue Q
Dan Wiese
Kill Hannah
Derrick "Hott Soss" Cummings
Patti LaBelle, Brian McKnight
Joe Andreoli
GIRAFFES? GIRAFFES!
Joe Berger
Jon Hammond Band, BCTD, Cymbalic Encounters
John Konesky
Tenacious D

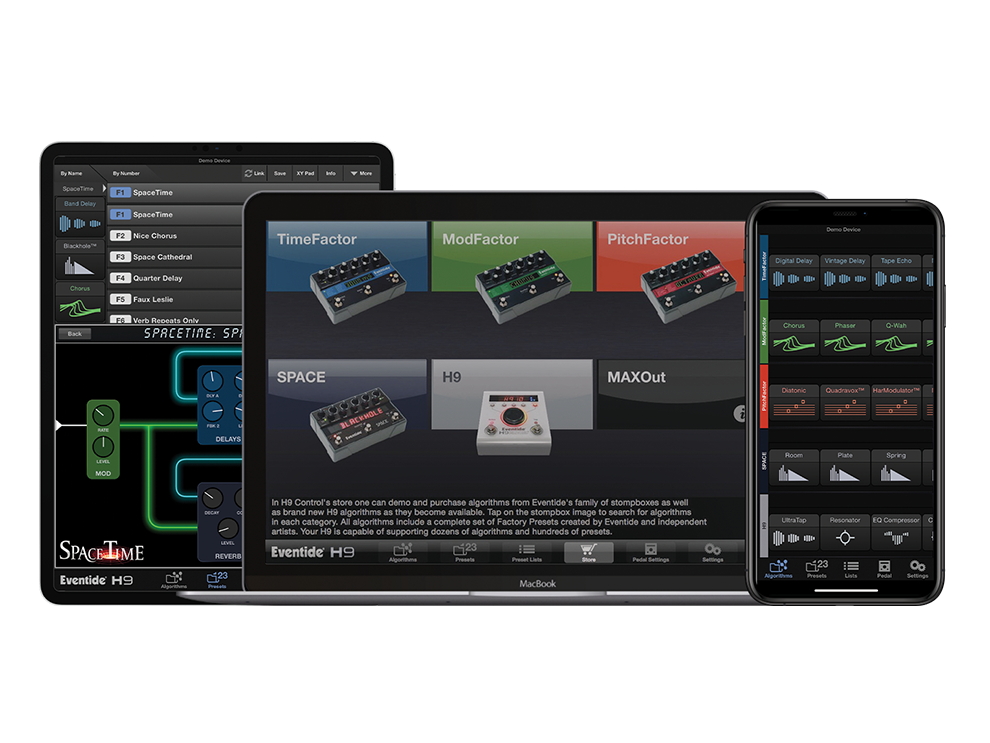

Eventide Device Manager

Unlocking the full potential of your Eventide pedal is easy with EDM. Connect the pedal via the USB port to your computer for direct access to all functionality of the pedal. EDM software allows users to control every parameter in a digital realm: Install software updates, create and manage presets, set up MIDI, and backup/restore the device. Effortlessly make changes by auditioning and experimenting with different sounds directly from the software.

Available for Blackhole Pedal, MicroPitch Delay, TriceraChorus Pedal, UltraTap Pedal, H9 Max, Rose, and Factor Series.

Eventide Device Manager for Rose and dot9 Pedals

Specifications

Input 1 (mono)

¼ inch mono phone jack

Input 2

¼ inch mono phone jack

Output 1 (mono)

¼ inch mono phone jack

Output 2

¼ inch mono phone jack

Expression Pedal

¼ inch mono phone jack

Aux Switch

¼ inch mono phone jack

USB

Type B Socket. Use 2.0 cables only

MIDI In

Five pin DIN (Female)

MIDI Out/Thru

Five pin DIN (Female)

AC Adapter Jack

US Power Supply included

Input Impedance

500K ohms

Output Impedance

470 ohms

Recommended Load Impedance

10K ohms or greater

Power

9V DC 500mA, Center positive (+), 5.5mm/2.5mm jack

Dimensions

English: 4.8″ (H) x 7.5″ (W) x 2.12″ (D)
Metric: 122 (H) x 190 (W) x 54 (D) mm

Weight

2.15 lbs, 1kG
