Reply To: Where can I find a PDF of the Mixing Link Application Handbook?

Home Forums Products Stompboxes Where can I find a PDF of the Mixing Link Application Handbook? Reply To: Where can I find a PDF of the Mixing Link Application Handbook?

#146028
jgoldbach
Participant

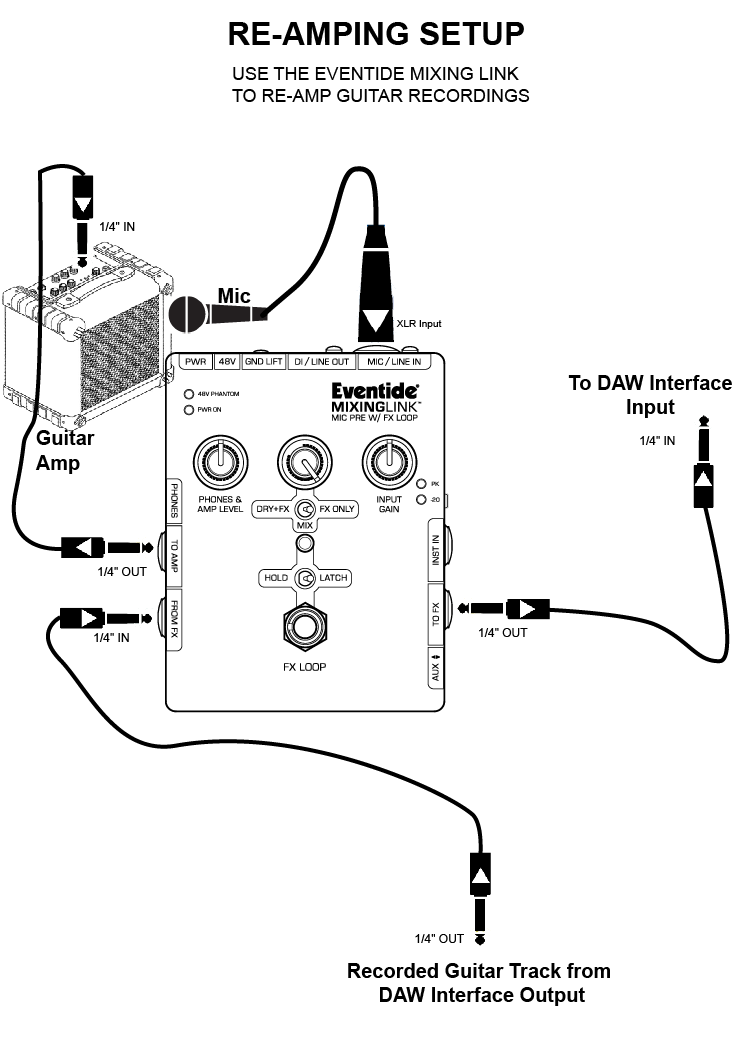

Here's a diagram that was created for re-amping. Hopefully it will help.

One of our engineers asked me to add the note that that the DAW interface cables can be 'balanced' TRS to TRS or TRS to XLR.
